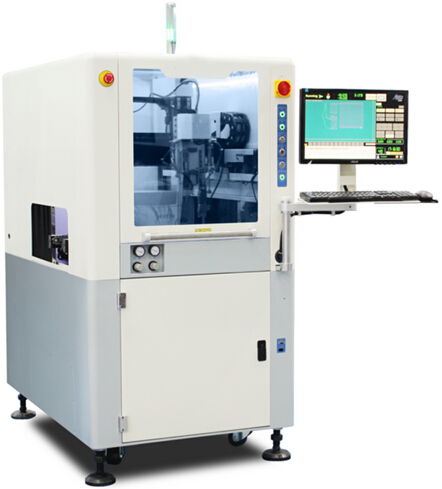

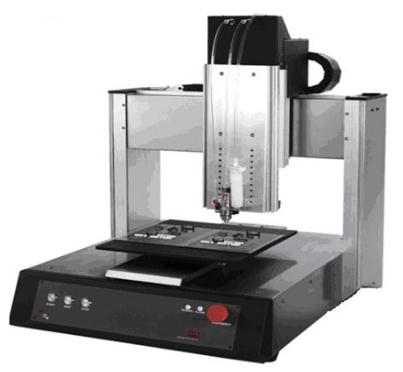

Conformal Coating Machine, CWCC-3L

Application:

PCBA surface coating, dam process, coating solder mask, DIP components fixing.

Features

1.Motion controller use computer+,WINDOWS operating system, failure alarming menu

2.Available by manual teaching programming which is easy and quick

3.Integral steel moving platform, to ensure the smooth running

4.X, Y, Z three-axis motion

5.Servo motor+ball screw drive

6.Run precision of 0.02mm,automatically eliminate difference

7.Nozzles automatic cleaning device

8.Special aluminum alloy rail and stainless steel conveyor chain

9.Independent material container

10.Equip with gas collection, exhausting devices

11.SMEMA port to connect with other devices

Technical parameter

Model

CWCC-3L

External Size L*W *H

1010*1360*1675mm(L*W*H)

Weight

500KG

Control Mode

IPC+control card

Software

CW software+Windows

Programming

Teaching box

Axis

XYZ

Drive

Servo motor +ball screw

Max. move speed

800mm/s

Coating scope

L580*W580mm

Max .PCB height

up 90 down 90mm

Rotation angle

±180º

Positioning accuracy

0.02mm

Repeat accuracy

0.02mm

Conveyor quantity

1

Width adjusting mode

auto

Width adjust speed

250mm/min

Conveyor height

900±20mm

Conveyor speed

2-5mm/min

Conveyor direction

L-R(R-L optional)

PCB edge space

5mm

Conveyor motor power

DC24V 69W

Communication port

SMEMA port

Nozzle quantity

2 sets

Nozzle type

pin type spray nozzle,film nozzle

Tilt angle

0~35º

Single coating width

2-30mm(According to the selected value)

Material volume

5L

Draft capacity

15 m3 /min

Power supply

AC220V 50/60Hz

Total power

2.2KW

Pressure

0.4Mpa

Programming panel

Standard

Material Detection

Standard

Camera location

Standard

Clamp device

Standard

Bar code

Standard

UPS

Standard

Waste recycling

Standard

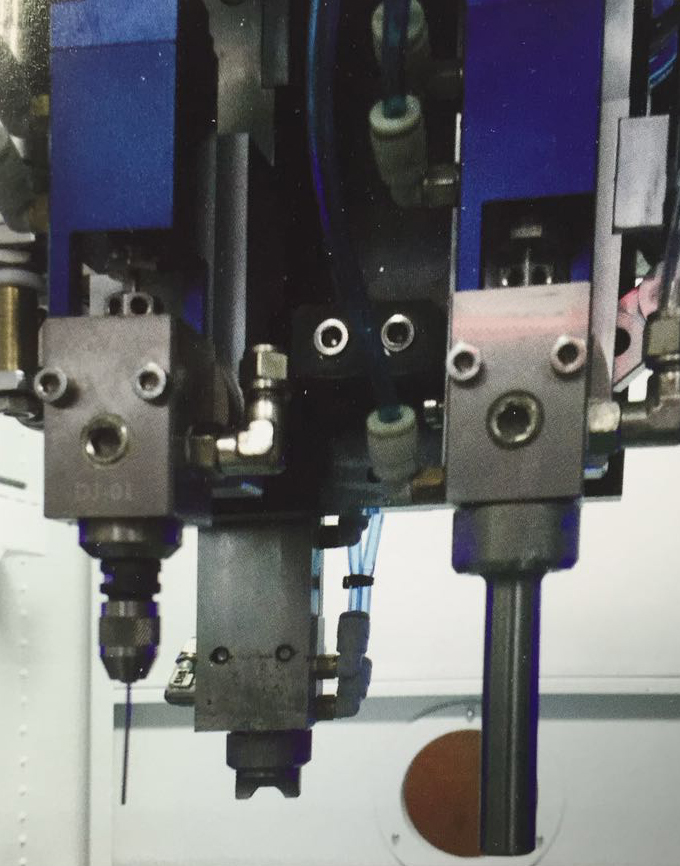

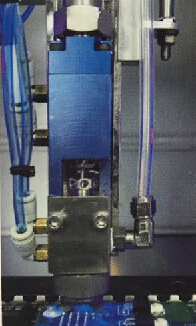

Nozzle option and function:







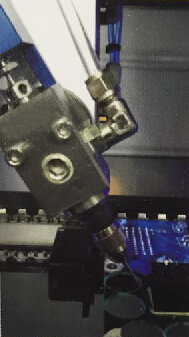

Tilt for dispensing

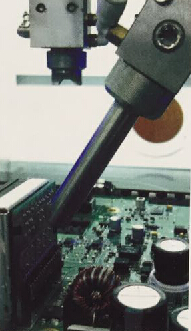

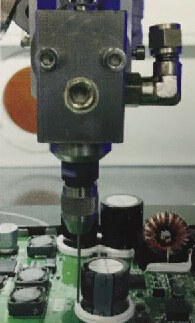

Tilt for coating





Can equipped with 2 sets of nozzle.

It can choose 3 from 5 that SA-W5, SA-W3,DJ-01, LA-W30, SC-W10

2 of them can be 35° tilt to achieve 5 axis working. The nozzle can down 75mm, and 3 nozzles can switch crbitrarily. The whole holder can be 360° rotation which can make high efficiency accuracy no-deadcorner.

Big area coating

Components fixing,

Dam protecting, Dot seal glue





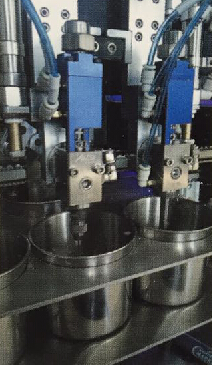

Automatic purging

when waiting

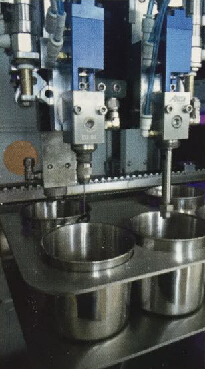

Automatic solbent after purging
