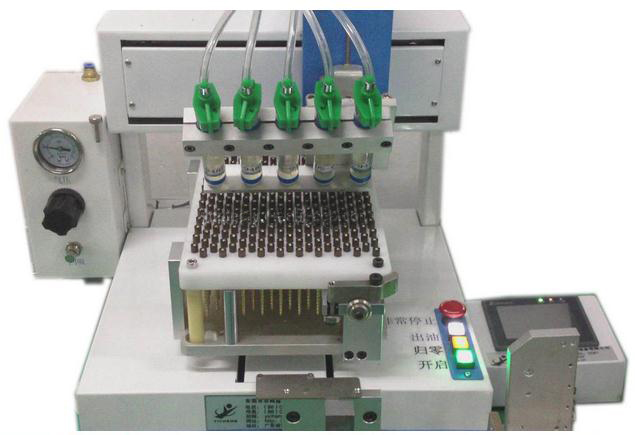

Glue Dispensing Robot, CWDJ-200
- Product description: Glue Dispensing Robot
-
Function:
Fast running speed, the use of touch-screen operation, within the effective range of travel products for point, line, circle, ellipse, etc. arbitrary geometries dispensing, dispensing tracks can be copied, the array can be performed simultaneously on multiple product dispensing, quick and easy operation.
Application:
Suitable for dispensing high precision dispensing products, mainly used in the field of electronic products.
Technical parameters:
Working stroke: X-axis 200mm, Y-axis 200mm, Z axis 50mm (this can be customized on request)
Driving pressure: 4.5 ~ 6.5kgf/cm2
Operating voltage: 110V ~ 250V
Operational Speed: 500 mm / s, acceleration 1500mm / s
Repeatability: ± 0.02mm;
Dimensions: 400 (L) X500 (W) X520 (H) mm (according to the stroke change)
Rated load: X axis 5Kg, Z axis 2Kg
Weight: about 70kg
