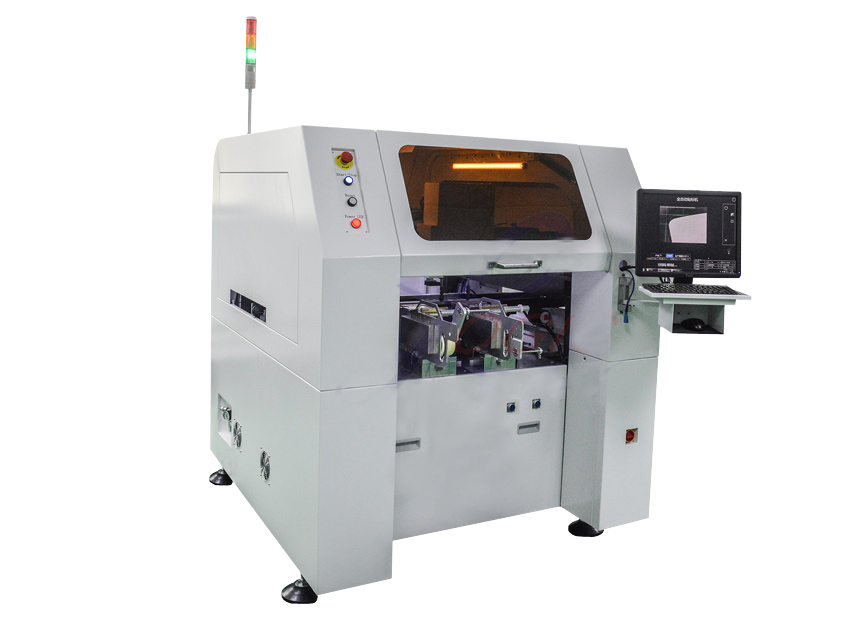

PCB Label Sticker Machine, CWTB-T2

Standard platform,Smart Accommodation

Accommodates for electronic products like mobile、various PCB、SMT produce line and FPC、camera 、LED chip etc,which will replace labour for place pressure sensitive adhesive、conductive adhesive、double-face sticker 、 Thermal conductive silicone foam 、shield laminating 、label、protecting film and bar code 、QR code etc.

Specifications:

Mount accuracy	±0.05mm
Positioning accuracy	±0.025mm
Repeat positioning accuracy	±0.05mm
Mounting Speed	1.5-2.5sec/pcs
Component Range	Min:L5W5mm,Max:L80W40mm
PCB size	Max:L340*W280mm
PCB Thickness	0.5-6.5mm
Feeder capacity	Standard: 2 feeders(80mm)
Positioning method	MARK point & screen frame for visual positioning+parts visual compensation
Mount head number	2PCS
Entry way	L-R R-L L-L R-R
Machine Dimension	L1130W1096H1426mm
Power Supply	200-240V 50/60Hz single phase AC 200-240V 50/60Hz
Power	1.0KW
Air Supply	0.4-0.6Mpa Dry air 0.4-0.6 bar
Machine Weight	About 800KG

Machine Features:

1.Mounting speed:1.3-2.5 sec/pcs

2.High Precision:The mounting element adopt the camera to identify the positioning,PCB positioning using Mark camera ,precise positioning (two positioning ).

3.Economic and convienent Nozzle: The Z axis buffer mechanism is designed on the mounting head to avoid the complexity of the nozzle design to ensure the safety of the product and to reduce the cost of the nozzle ,Easy to Changeover and increase throughout greatly.

4.When installing the components, the torque mode is adopted to protect the product and prevent the damage.

5.The vision system supports read date for one dimensional code, two-dimensional code.

6.Stable and perfect control system, support various materials、production methods and other application etc.

7.With the EMS system to achieve online production.

Configuration:


High precision and stable structure integrated frame to ensure stability for high speed mounting work.	High optimized electric control box structure,compact and safe electric arrangement,which can effectively save space and ensure the convenience of maintenance.	Adopt high precision servo motor and high precision screw guide rail are used to form a complete closed loop control system to ensure that the equipment with high and stable repeatability positioning accuracy.

High precision vision system hardware is composed of two high resolution cameras,positioning algorithm ,with multi axis mount head to improve efficiency greatly.	Two simple operation electronic smart feeder which Accurate feeding and easy to changeover and could be customized according to customer requirements of various specifications of automatic feeding device.	Double mounting nozzles is controlled independently which improve high mounting precision greatly and can mounting two different materials at same time.
