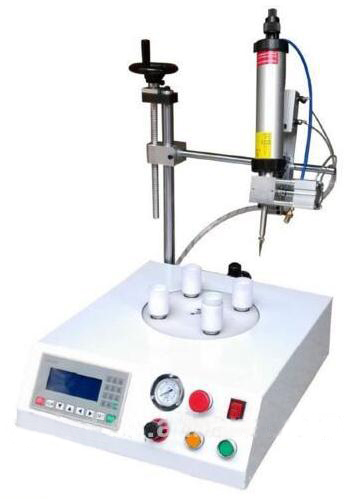

Dispensing Robot,PCB Dispensier,CWDJ-04
- Product description: Dispensing Robot,PCB Dispensier,CWDJ-04
-
Product introduction:
Design / desktop multi position indexing disk, improves the utilization rate of the space.
Software to dispensing system developed independently, simple operation interface, user-friendly, easy to master.
I a device can replace 3 to 5 artificial, increasing capacity.
I high product uniformity, glue saving, finished without trimming.
I workshop to improve the environment, enhance the customer satisfaction of factory.
Functional characteristics:
1, shell materials with 3mm thick cold rolled plate, solid, beautiful appearance.
2, by industrial PLC, text controller, easy to operate, user-friendly.
3, precision stepper motor drive, accurate and reliable reciprocating motion.
4, pneumatic parts imported pneumatic components control, fast response, long service life.
5, unique straight suction valve design, glue glue quickly, clean, not drawing.
6, four position indexing disc design, greatly improving efficiency, production capacity of up to 1500 / hour;.
7, program set the whole circle can also be sub dispensing, dispensing, dispensing single point arc.
8, handwheel + slide rod design, adjusting and positioning easier.
9, optional increased UV glue function.
10, optional increase the vacancy detection function.
Technical Parameter:
Dimension L420mm*W532mm*H532mm
Weight 35Kg
Control PLC
Programming text demonstration program
Drive mode precision stepper motor
Disc turning diameter 240mm
The maximum diameter of dispensing 110mm(4 station)160mm(2 station)
motor speed 0~300Rev / min
positioning accuracy ±0.1mm
Z axis adjustment mode Trapezoidal screw
Z axis adjustment range 250mm
Z axis stroke 30mm
Working power supply AC220V/50~60Hz/200W
Working pressure 0.4~0.6Mpa(No water mist)
working temperature room temperature
Apply glue All kinds of silica gel, silica gel, UV - Thermal shade less glue, two-component epoxy resin etc.
Suitable product:
LED fluorescent tube plug, bulb, energy saving lamp, candle lamp, lamp or other circular products.
Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical apparatus LED (Round products)
