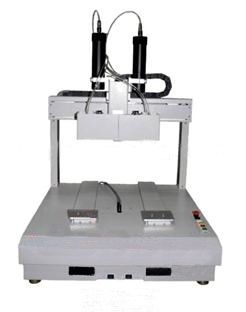

Glue Dispenser Machine,CWDJ-330

Glue Dispenser Machine,CWDJ-330

  • Product description: Glue Dispenser Machine
  • INQUIRY
Function:
By using four axis motion control system, accurate positioning of the dispensing position, accurate control adhesive volume, can realize single platform, double platform tilt rotary dispensing, dispensing pattern can realize X type, Y type, W type, and other patterns of mosquito repellent .The rotary dispensing valve, valve core ceramic unique to precise control of dispensing quantity, convenient replacement, convenient cleaning. The device has a position correction, replication, array, automatic positioning and dispensing process multi parameter set up, and fully guarantee the quality of glue and other powerful features


Parameter:
Outline Size:                  (L*W*H) 630*620*800mm
Largest Stroke:               (X*Y*Z) 500*420*110mm
Dispenser Accuracy:      ±0.05g
Drive Type :                   4 axis precision step motor
positioning accuracy :    ±0.15mm
Slide Guide :                  import slide \ screw rod
Control System :            motion control system
Program Memory :         256groups,400dot/groups
Dispensing method:       single\double tilt, rotary
Com Port:                      USB
Input Voltage:               220VAC,50HZ
Air pressure:                  0.3Mpa
Net Weight:                   30kg


Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 15 years experience
# Free sharpening for blades within 3 months
