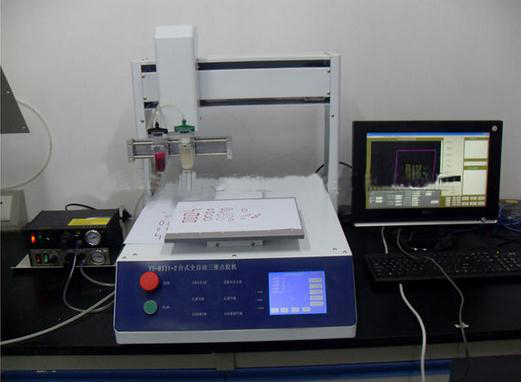

Glue Dispenser Machine,CWDJ-331
- Product description: Glue Dispenser Machine
-
Features:
1 English panel, easy operation.
2.Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
3. Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
4. Satisfy high quality glue dispensing by adjusting the parameters of screw
5. Precise stepper motor, numerical control available
6. Applied to fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
7.According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.
Specifications:
Working area(X/Y/Zmm) 300/300/60
Max. Speed 500mm/sec
Resolution 0.01mm
Repeatability +/-0.01mm
Display 5.7’ LCD
Drive mode Micro Stepping Motor
Power 220V /110V
Working enviroment Temperature:5-40 degrees Celsius Humidity:20-90%RH
Size(L*W*H) 660x650x550mm
Weight 70KG
Application:
Applicable objects: Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.
Glue type:
Silica gel, EMI conductive adhesive, UV glue, AB glue, glue, epoxy adhesive, sealant, hot glue, grease, glue, red glue, silver paste, thermal paste, solder paste, transparent paint
