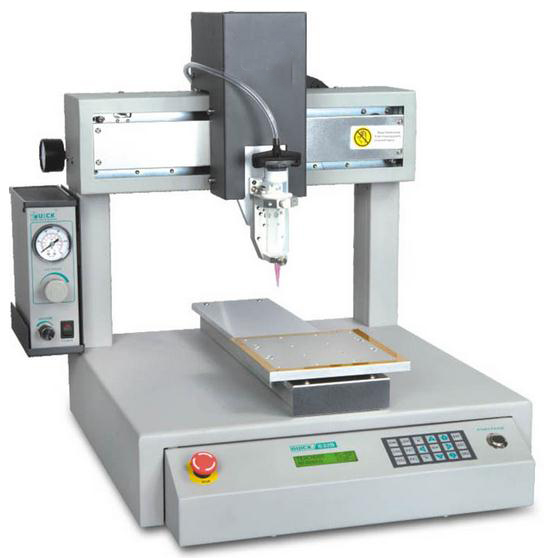

Glue Dispenser,CWDJ-320

Product description: Glue Dispenser
INQUIRY

Festures:
1.High performance and nice platform.
2.High precision step motor,accurate dispensing orbit.
3.Dispensing speed and time set separatedly.
4.Various types of dismensing needles,syringe,dispensing valve and controller available.
5.Special movement range can be customized.

Specifications:
Voltage 100-240V AC
Moving Range X: 300mm Y: 300mm Z: 100mm
Moveing Speed X: 0.1-600 mm/sec Y : 0.1-600 mm/sec Z: 0.1-300 mm/sec
Repeat Precision X: ±0.02mm Y: ±0.02mm Z: ±0.02mm
Resolution X: 0.01mm Y: 0.01mm Z: 0.01mm
Loading Weight Workable: 5kg Head: 2kg
Demo File Capacity ≤999,max 60000 points
Process File Capacity ≤255
Temperature 0-40℃
Humidity 20%-90%(no condensing)
Dimensions W*D*H 420*480*500
Weight About 27kg

Our Service:

# 1 day delivery

# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 15 years experience
# Free sharpening for blades within 3 months
