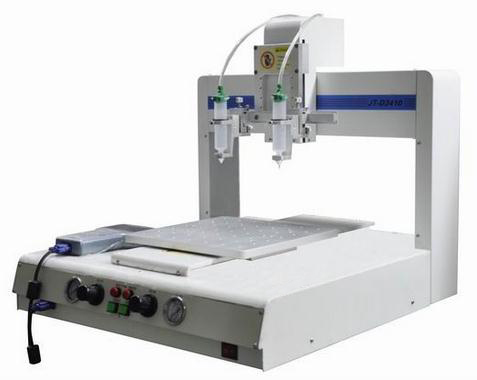

PCB Dispensing Robot,CWDJ-314

PCB Dispensing Robot,CWDJ-314

  • Product description: PCB Dispensing Robot
  • INQUIRY
Product Description:
1,High Strength equipment fuselage,XYZ vertical degree is high.
2, Airframe adopt CNC equipment integrated processing,effectively guarantee the verticality of XYZ,improve the  machining precision of the equipment.
3,Single machine is easy to operation.installation.
4,Completely do not need to match the external computer can be stand-alone operation.Set is not only    convenient to installl and operate simple.
5, Humanized teching box allows you to easily complete program setting.
6, Collocation of graphic buttons design taching box.allowing you to easily set between fillip to complete any dispensing path set.Copy to be simple and easy to complete all kinds of path matrix.offset modification,correction point.And the super functions such as program transmission between machines.
7,The only 3d PC-BASE of circular interpolation control system.
8, Carefully developed control card let JT-D3200 become a real inhibits PTP and CP three-axis circular arc interpolation equipment.
9, Allows you to rest assured use on any non planar 3 d dispensing  path .
10, Suitable for all kinds of requirements on adhesive industry.
11, General common UV glue,silicon.Epoxy.Silver glue,red glue,A.B glue.COB black glue.conductive adhesive.thermal aluminum paste.super glue.Such as glue.all can use in this devices.

Applicable objects:
Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, Filter,Buttons,clocks, toys and medical apparutus etc.

Glue type:
Silica gel, EMI conductive adhesive, UV glue, AB glue, glue, epoxy adhesive, sealant, hot glue, grease, glue, red glue, silver paste, thermal paste, solder paste, transparent paint.

Parameter:
Working RangeX/Y/Z-Axis(mm):       400*400*120MM
Max Load Y/Z-Axis:                                           10Kg/5Kg
mm/sec:                                                             0.1~800
Resolution:                                           0.01mm/Axis
Repetitive positioning accuracy:                         +/-0.01mm/Axis
Robot weight:                                           80kg
Dimensions(W*D*H): 635*575*600mm
Working temperature:                                           10~40℃
Motor system:                                           imported Micro precision motor
Program Display:                                           LCD

Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 15 years experience
# Free sharpening for blades within 3 months
