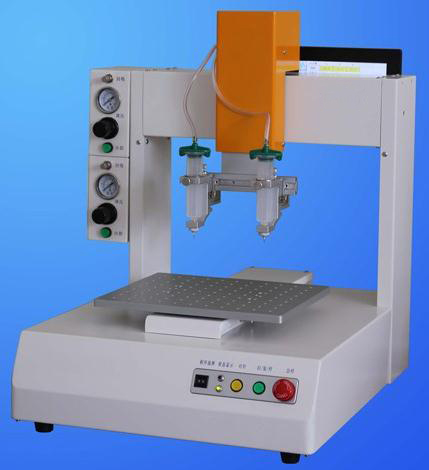

PCB Dispensing Robot with UV AB Glue,CWDJ-301

PCB Dispensing Robot with UV AB Glue,CWDJ-301

  • Product description: PCB Dispensing Robot with UV AB Glue,CWDJ-301
  • INQUIRY
Applicable subject:
1. Communications equipment manufacturing: mobile phones, telephones, interphones, fax machines, etc.
2. Computer industry: computers, digital products, digital cameras, printers, MP3, MP4, electronic toys.
3. Electro-acoustic industry: speakers, buzzers, headphones.
4. Small transformers, SMD transformers, relays, small coil motors.
5. Electronic industry: electronic components, integrated circuits, circuit boards, electronic parts, switches, connectors, wires, plug cables, radiators, batteries, etc
6. LCD industry: LCM, LCD, LED.
7. Optics: optical lenses
8. Medical apparatus

Applicable fluid:
UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, inks, screw fixative,etc.

Product advantages:
1. Touch screen,English operation interfacefor easy use.
2. Threesimultaneous controllable axes, dispensing points, lines, surface, circles, arc,and irregular curves.
3. Can set the glue amount, speed and time etc, insuring glue flowing stable and no leaking.
4. Fast and high-accuracy.

Main Technical Data:
Work Area                      300mm(X)*300mm(Y)*100(Z)mm
Maximum speed    500mm/sec(X)*500mm/sec(Y)*500mm/sec(Z)
Size                      465mm(L)*556mm(W)*688mm(H)
Max load                      10kg(workbench)/5kg(Z-axis)
Drive mode    Stepping motor+belt
Repeatability   ±0.02mm
Operation  system    Teach pendant
Motor                      Japan micro stepping motor
Movement pattern    3 axis point to point,continuous line, arc
Power supply    AC220V 50Hz
Work condition    Temperature 0-40°C;humidity 20-90%
Weight                      About 45KG
