SMT Stencil Cleaner

Machine description:

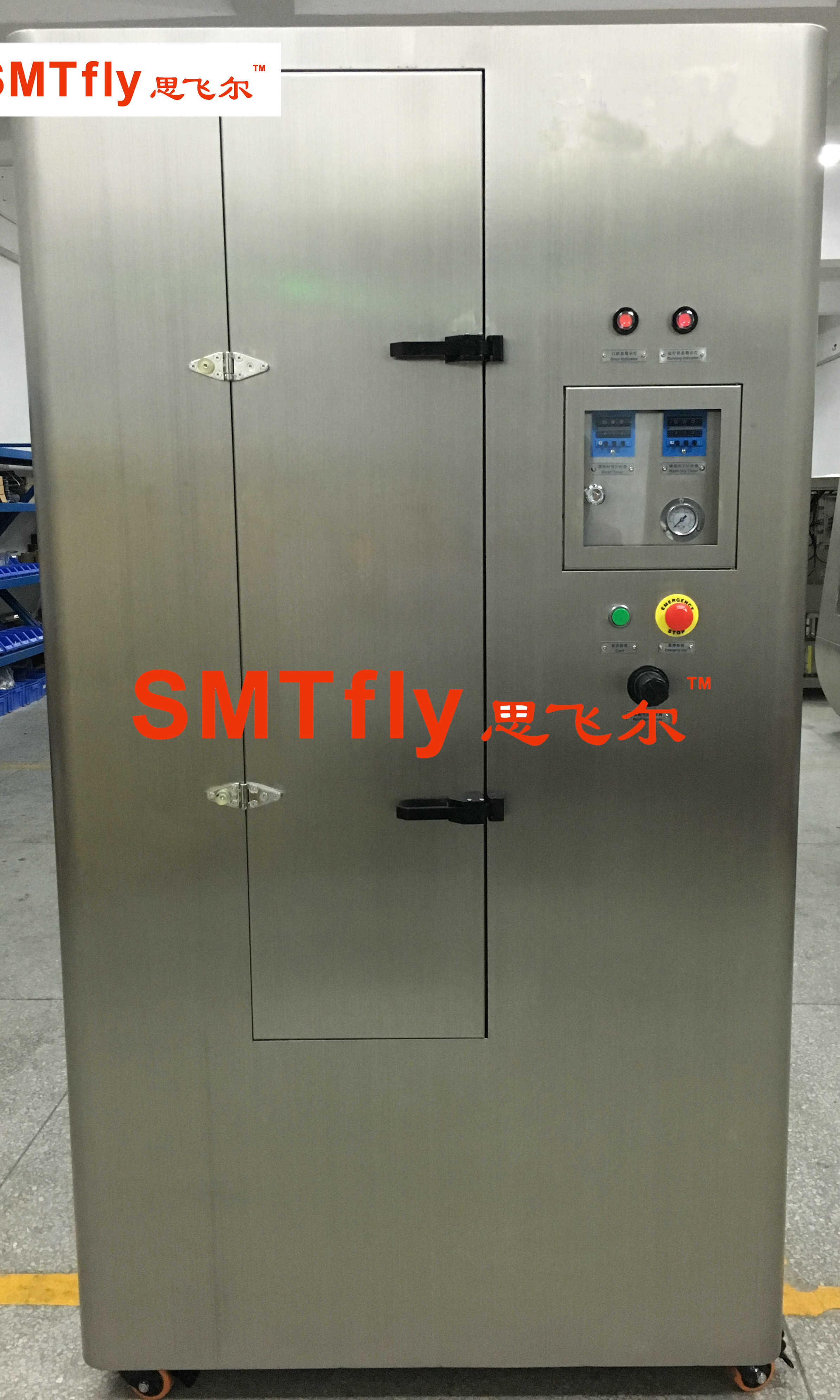

SMTfly-3110 is a large pneumatic stencil washing machine, suitable for cleaning large stencil with 1200x1200mm size. The use of water-based cleaning fluid, a significant reduction in the use of cleaning liquid. Our specially designed liquid circulation line and a new point of spray rod jet rotation mechanism, resulting in a stable cleaning spray force, completely solve the problem of large-size cleaning difficulty.

smt stencil cleaner

Machine Feature:

1. All SUS304 stainless steel structure, beautiful and durable, acid and alkali corrosion, 10 years life time.
2. Completely use compressed air as power, no electricity, use 100% safe.
3. One-button mode of operation, equipped with automatic drainage function, easy to use.
4. Special liquid circulation line and jet rotation mechanism, to ensure clean large-size stencil cleaning.
5. Full coverage, the maximum cleaning 1200x1200mm size stencil.
6. Interlocked safety door design, open the door to stop, to ensure safety.
7. Aggregate the world's leading brand parts, to ensure long-term stable use of the machine.
8. Modular design, maintenance and easy maintenance.



Machine Specification:

Item

Parameter

Max stencil size

1200*1200*40(mm)

Chemical tank

82L

Wash time

2-6min

Resin time

3-8min

Air supply

0.5-0.7Mpa

Air consumption

600-1000L/min

Filter system

20/5/1um(3 levels)

Clean type

360°rotate jet clean+compressed air blow dry

Machine weight

400kgs

Machine size

1550mm(L) x 1100mm(W) x 2050mm(H)
