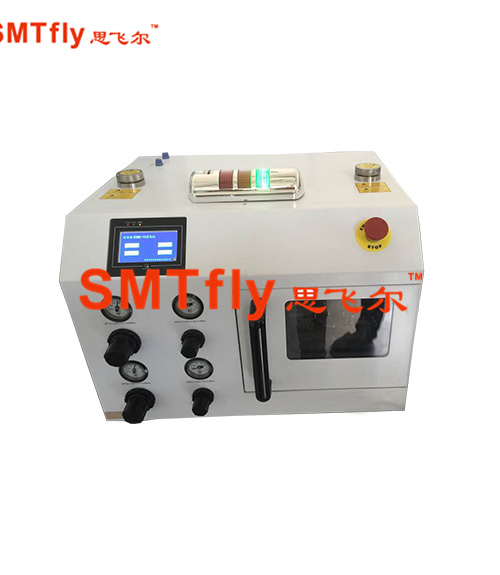

SMT Nozzle Cleaner Machine, SMTfly-12

SMT Nozzle Cleaner Machine description:

By using latest soecial machanism design, this model uses the hydrodynamic  water fragmentation, producing very fine water mist, with the speed of sound (360m/s) to form a strong momentum jet t the nozzle and form a continuous energy field on the top of nozzle, crushing the dirt on the surface or internam of nozzle, during the cleaning process the cleaning liquid (DI water) can be achieved automatic direct emissions, no need cleaning solvent at all.

Clean: 12 nozzles at one time. It can clean all types of nozzles by different nozzle trays. Compressed air blow to make nozzles dray.

Check: Standard equipped nozzle inspector.

Nozzle Cleaning Machine

Machine Feature:

1.       Clean 12 nozzles per time, quicker and more efficient

2.       Replace traditional manual clean, avoid troubles caused by ultrasonic cleaner, reduce rejection rate.

3.       To clean the dirt completely which ultrasonic cleaner can not deal with

4.       Cleaning result will not affect by the smaller and smaller nozzle

5.       Thoroughly clean 99% dirty nozzle, extend the lifespan of nozzle

6.       Protect the coating surface of nozzle and its reflection panel.

7.       Never use solvent, only environmentally friendly DI water is enough

8.       Easy operation

9.       Applicable to all kinds of mouter nozzles, especially on corss, I-shape, odd shape nozzles


Machine Specification:



Air supply


Power supply

AC 220V, 1A


DI water or purified water

Jet Pressure


Liquid consumption


Nozzle range

Min 01005-Max inner diameter 2.0mm

Jig spec

12 holes

Machine size


Machine weight
