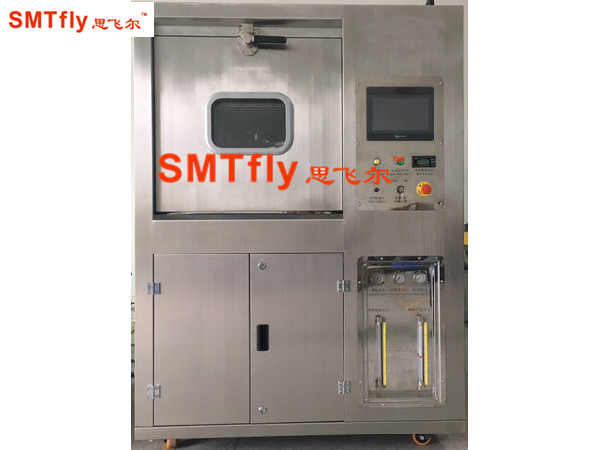

PCB Cleaner, SMTfly-5600

Machine description:

This machine is an integration of high-end cleaning machine,with energy-saving environmental protection, bulk cleaning it can complete the cleaning, rinsing, drying function automatically .

 Mainly used for aviation, aerospace, medical, new energy, automotive electronics and other industries high-end products, multi-species, small and medium-sized PCBA board cleaning it can effectively clean the SMT/THT PCBA after welding the surface of the residual rosin flux, water-soluble flux, no-clean flux / solder paste and other organic and inorganic pollutants.

PCB Cleaner

Machine Feature:

1.       Total SUS304 stainless steel sructure, strong acid and alkaline resistance, durable

2.       2-layers cleaning baskets: big 2 layers: 645(L)*560(W)*200(H)*2

3.       Easy Chinese/English operation interface, quick and easy cleaning process parameters setting, precedures can be sored and called out, different password can be set according to different management authorization.

4.       Standard cleaning chemicals can be added into machine manually or using dosing pump to add pure chemicals and DI water autmatically according to different ratio(5%-20%)

5.       Cleaning chemicals heat system, can heat to the suitable temperature, make cleaning efficient

6.       Cleaning all kinds of clux and solder paste

7.       Real time electrical conductivity monitor system to monitor cleaning result, can be set to 10-400us.

8.       High standard cleanness, ion contamination is fully consistent with IPC-610D I level standard

9.       Cleaning chemicals repeated use in the machine, it can reduce 50% chemical cost

10.   Built-in resin pipe out filtration system to effective filtrate all kinds of impurity substance likke COD, BOD, PH…etc



Machine Specification:

Item

Parameter

Cleaning basket size(mm)

645(L)*560(W)*100(H)*2layers

Liquid tank(L)

17

Pure chemicals tank(L)

32

Dilute chemicals tank(L)

60

Clean time(min)

5-20

Dry time(min)

20-40

Chemical heat temp.(Mpa)

0.5-0.7

PCB hot air temp.(L/min)

400-600

Electrical conductivity range(us)

10-400

Auto ratio range

5-20%

Chemical filter

1um or 0.45um

Rinse the discharge filter system

0.45um

Hot air filter

10um/5um

DI water supply(L/min)

30-65

DI water pressure(Mpa)

0.4

Vent size(mm)

125*50(H)

Power/Air supply

380V, 30KW

Machine weight(KGS)

450

Machine size(mm)

1300*1000*1720
