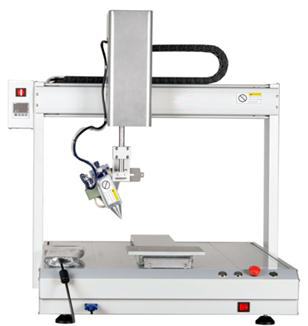

Dispensing Robot,CWDJ-300
- Product description: Dispensing Robot
-
Features:
1.Can acheive dispensing dots,lines,arcs and circles.
2, Japan's three star annular belt, Taiwan PMI linear guide with Japan's Shin-Nong stepping motor highly cost-effective combination.
3, when the high-speed movement is very smooth and low noise operation.
4, aluminum surfaces without glue special treatment, clean the machine becomes extremely easy.
5, using a special assembly process timing belt pulleys and motors, with the latest Japanese technology belt, completely solve the long-term use of belt tensioning and loosening problems.
6, a modular assembly process, each of the key components and key locations can be individually demolition, accidental damage parts Jieke quickly replaced.
7, using a combination of European import brands button switches, high sensitivity and durability.
Specifications:
Machine size 520*560*750mm (L*W*H)
Efficiency size 300*300*100mm (X*Y*Z)
Dispenser accuracy +/-0.05g
Resoluiton 0.01mm/axis
Drive mode 4 axis precision step motor
Poistioning accuracy +/-0.02mm
Slide guide Precise linear guide rail\screw rod
R-accuracy +/-0.05°
Controller Japan masashi
Memory size Memory size:200 group, 5000dot/group
Dispensing method single\double tilt, rotary
Max travelling speed 400mm(XY)/200mm(Z)
COM USB
Language English/Chinese
Power 110VAC220VAC, 50HZ/60HZ
Air Supplier 0.3Mpa
Weight 30kg
Packing Wooden box
