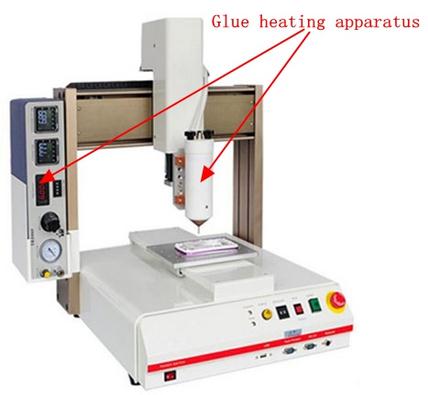

Glue Dispensing Machine, CWDJ-220

Glue Dispensing Machine, CWDJ-220

  • Product description: Glue Dispensing Machine
  • INQUIRY
Features
1.Setting programming following English language instructions of Teach Pendant.
2.An LCD display prompts the user for a data input and once confirmed, automatically displays the next instruction.
3. 100 programs, 400,000 points memory capacity, 4000 points per program.
4.Dispense in point, line, surface, arc, circle and irregular curve, and triaxial linkage function.
5.The dispensing dose is stable without leakage.
6.Resolution of dispensing time is 1 ms.


Technical Parameters:
Work area (X/Y/Z)mm:               500*500*150
Max. speed(mm/see):                    0.1~800/500
Dimensions(W*D*H mm)             685*700*660
Resolution               0.01mm/Axis
Repeatability               +/-0.01mm/Axis
Operation interface              LCD touch panel/Handhold control box
Drive mode                Micro stepping motor/belt
Power                                AC220V 50-60HZ 0.8KW
Net weight                                 52kg
Operation environment             Humidity:20-90% RH, Temperature:0-40°C
Date storage type                       CF Card


Suitable liquid:
     Various solvents, adhesives, paints, chemical materials, including silicone glue, EMI conductive glue, UV glue, AB glue, fast rubber, epoxy adhesive, sealant, hot glue, polyester, grease, silver plastic, red plastic, paste, thermal grease, anti-paste, lacquer, screw fixation agent, wood glue, anaerobic adhesive, acrylic plastic, wear rubber, Crystal, potting compound, plastic horn, blink ring, rubber paint, enamels, lacquers, inks, paints, smoke oil and so on.


Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 12 years experience
# Free sharpening for blades within 3 months
