  • Laser Tin-Ball Spraying Soldering Machine,SmtflyLS-B

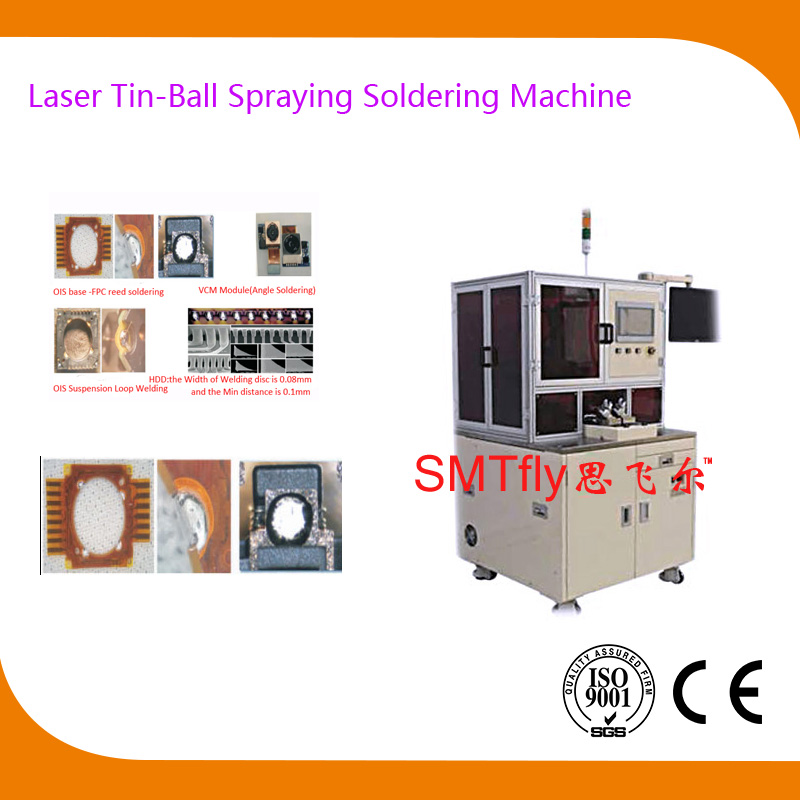

Laser Tin-Ball Spraying Soldering Machine,SmtflyLS-B

Laser Tin-Ball Spraying Soldering Machine,SmtflyLS-B

  • Product description: Laser Tin-Ball Spraying Soldering Machine,SmtflyLS-B
  • INQUIRY

Laser Tin-Ball Spraying Soldering Machine,SmtflyLS-B Special Features:

1.apply to solder with high-precision for -10um or +10um, the smallest interval  of the product is 100um.

2.Optional to a bigger range of the solder ball, the diameter is 0.25mm.

3.apply to the metal surface with tin, gold and silver. More than 99% soldered product is good.

Technical  Advantages:

1.quickly done the process of heating and melting within 0.2s.

2.melting the solder ball  in the soldering  place without  splash.

3.No flux is required, no pollution, long life time of electronics.

4.The smallest  diameter of the solder ball is 0.1mm, the machine meets the developing trend of integration and precision.

5. According to different size of the solder ball, the operator can solder different soldering  points.

6.The quality of the soldered product is good.

7. meet the need of  massive production in assembly line with the cooperation of CCD  positioning system .

Parameters :

Laser Parameter Power                         Optional 50-200W
Wave Length                                       1070±5mm
Pattern                                               Constant or Pulse
Solder Ball Size Ø0.25MM
Controlling Way                                   PLC Action and PC Picture Processing
Repeated Precision ±0.003mm
Vision Positioning System                     CCD 5Million pixels
Resolution Rate ±5um
Shape Size                                          1250*950*1650
Load Plate Size <110*130mm
Main Engine Weight                             550KG
Power Dissipation                                3KW
Power Supply                                      AC220V,15A
Compressed Air                                   0.6mpa

Product Description:

Laser tin-ball soldering ball is laser through fiber transmission, the output port is attached to the top of tin-ball, to provide the inlet for high-pressure gas entrance in the annular cavity, to molten solder ball, then high pressure inert gas can ensure there is enough pressure to molten solder ball dripping, guarantee the tin ball will not be oxidation, high precision, good welding effect.

Multi-axis intelligent working platform, equipped with coaxial CCD positioning and monitoring system, effectively ensures soldering accuracy and yield rate.

Application:

Applied tin-balls spraying soldering, very high soldering accuracy,  can effectively ensures the soldering precision especially for the areas sensitive temperature

microelectronics :  aviation, military electronics industry, sensor industry

other industries :  optical electronic industry, MEMS, sensor industry, BGA, HDD


Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 15 years experience
