Auto Nut Embedded Machine

Auto Nut Embedded Machine, SMTfly-FY185

Machine description:

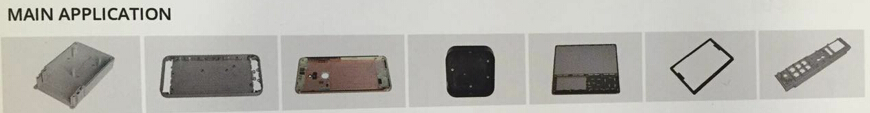

Standard single head nut embedded machine, mainly applieds to the laptop shell, electronic book device(Kindle), charging device, wifi box, etc.

Machine Feature:

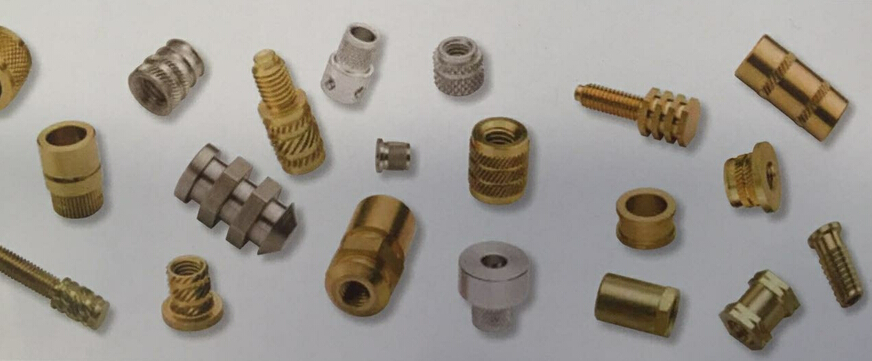

1. High quality parts feeding solution with insert orientation requirement

2. Vibratory plate/ linear feeder.

3. Orientation tooling

4. Sensors for leak prevention

5. Variable temperature and pressure control system

6. Heat chamber/tip to ensure the stable temperature of insertion

7. Customized pressure set up on choosing the cylinder

8. Romote diagnosis

Machine Specification:

Item	Parameter
Dimension	100010001600mm
X axis effective processing size	200mm
Y axis effective processing size	180mm
Position accuracy	±0.01mm
Motion control	Four axis servo motor + ball screw guide
Operation programming mode	Touch screen + hand wheel
Work efficiency	1.5-2s/pc
Product decomposition	0.01mm
Speed	10-30000mm
Input power	AC220V, 50/60Hz
Input air pressure	0.4-0.7Mpa
Heat chamber/tip temp	0-400℃
Working environment temp	0-40℃
Power consumption	2.0KW
Weight	350kg
