Screw-thread Inserts, SMTfly-E350

Machine description:

Standard single head nut embedded machine, mainly applieds to mobile phone metal shell such as the aluminum, ect.

Machine Feature:

1. High quality parts feeding solution with insert orientation requirement

2. Vibratory plate/ linear feeder.

3. Orientation tooling

4. Sensors for leak prevention

5. Variable temperature and pressure control system

6. Heat chamber/tip to ensure the stable temperature of insertion

7. Customized pressure set up on choosing the cylinder

8. Romote diagnosis

Machine Specification:

Item

Parameter

Dimension

1000*1400*1600mm

X axis effective processing size

500mm

Y axis effective processing size

300mm

Position accuracy

±0.01mm

Motion control

Thress axis servo motor + ball screw guide

Operation programming mode

Touch screen + hand wheel

Work efficiency

1.5-2s/pc

Product decomposition

0.01mm

Speed

10-30000mm

Input power

AC220V, 50/60Hz

Input air pressure

0.4-0.7Mpa

Heat chamber/tip temp

0-400

Working environment temp

0-40

Power consumption

2.0KW

Weight

300kg

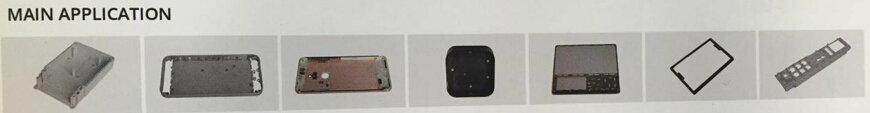

Application:

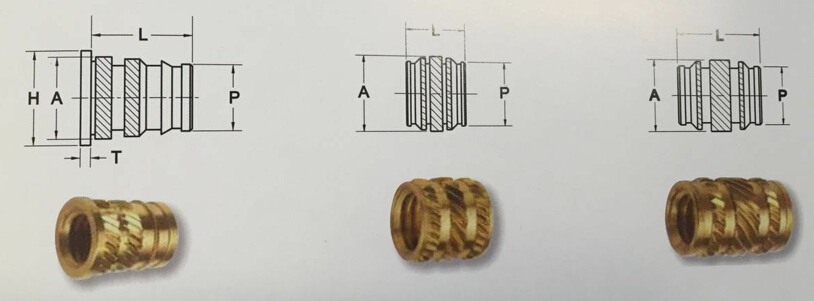

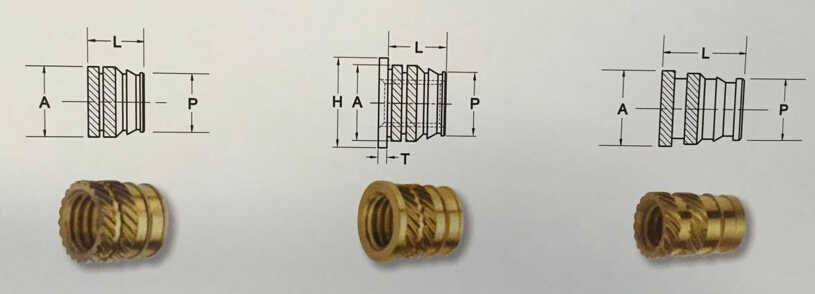

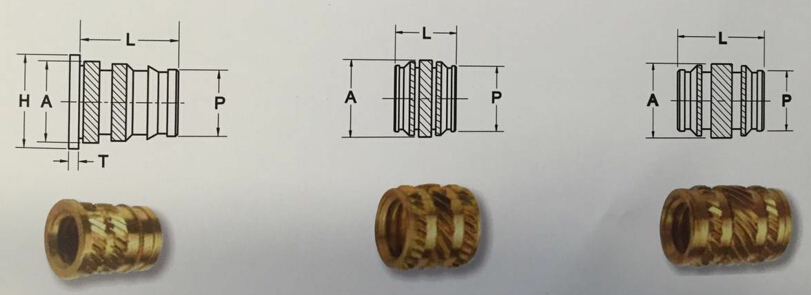

Standard insert types:
