  • Hot Bar Soldering Machine,CWPC-1A

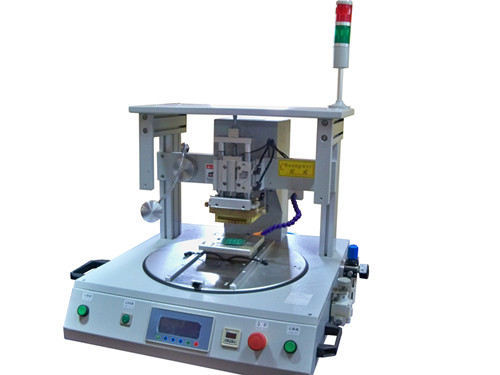

Hot Bar Soldering Machine,CWPC-1A

Hot Bar Soldering Machine,CWPC-1A

  • Product description: Hot Bar Soldering Machine
  • INQUIRY

Hot Bar Soldering Machine,CWPP-1A Feature:

1. Extremely short cycle time with rotary table design
2. Product loading and unloading can be done during the heat sealing process
3. High quality heat seal application up to 0.25mm pitch
4. Pneumatic bonding head provide up to 3,900N force
5. Digital programmable pressure control with LCD display
6. Closed loop PID temperature control with visible LED display
7. Bonding cycle is triggered by a real time pressure sensor
8. Floating Thermode ensure consistent pressure and heat transfer along the flexfoil to LCD and/or PCB
9. Precision product fixtures (2X), easy exchange, provided with micrometer alignment and vacuum to fix components
10. Optional CCD alignment module with frame, camera, lens, monitor and illumination for fine pitch application
11. Full microprocessor logic control


Hot Bar Soldering Machine,CWPC-1A Specification:
Size:                            500mm X 750mm X 640mm
Work Air Pressure:     200mm X 260mm
Air pressing:               0.45~0.70Mpa
Weight:                       90Kg

Hot Bar Soldering Machine Video


Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 15 years experience
# Free sharpening for blades within 3 months
