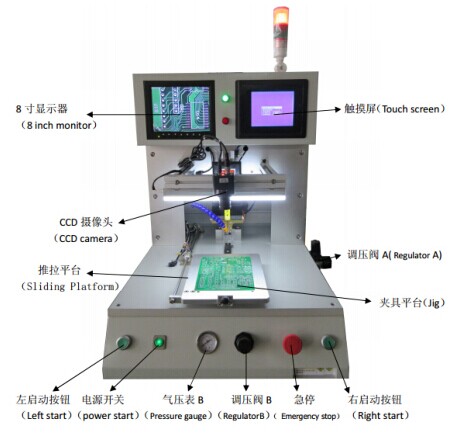

Solder Solutions for Soldering FPC to PCB,CWPP-3A Feature
1. According to different products, optional temperature for your choice.
2. Unique material thermode head, ensure the average pressure
3. Has vacuum function, easier for adjustment and positioning.
4. NC temperature, clear and high precision
5. With digital pressure gauge, pressure range can be preset.
6. Microcomputer control, high accuracy and stable.
7. Programmable curve Including pre-heating and reflow soldering temperature.
8. Suitable for all kinds of high density TAB, TCP and pressure to FPC, FFC and PCB soldering pressure welding.
9. Precise PID control, phase angle replace pulse drive.
10. Less Libration, less noise, avoiding voltage fluctuate
11. Real-time display temperature curve and temperature data.
12. Touch screen input data, simplify the operation.


Solder Solutions for Soldering FPC to PCB,CWPP-3ATechnical parameters
Machine size：             660×660×700mm
Working area：             Max 200*170mm
Machine weight：        89Kg
Working air pressure： 0.6-0.8Mpa
Power supply：            AC220V±10% 50HZ,2200W
Temperature settings：Two
Working environment：10-60℃，40%-95%
Welding pressure：       1~20Kg
Temperature settings： RT~500℃ tolerance ±5℃
Pressing time：             1~99.9s
Welding precision：      pitch 0.2mm
Thermode head size：   Max 60*3mm
Fixture quantity:             1
Alignment mode：       CCD + LCD Monitor
Feeding mode：           Manual
Starting mode：            Press two start buttom
Heating mode：            heating pulse rise time of 1-2 seconds
Rotation Platform：      Cylinder control，tolerance<0.02mm

Solder Solutions for Soldering FPC to PCB,CWPP-3A Application
. For a variety of high density TAB, TCP crimping and FPC, FFC and PCB solder crimp.
