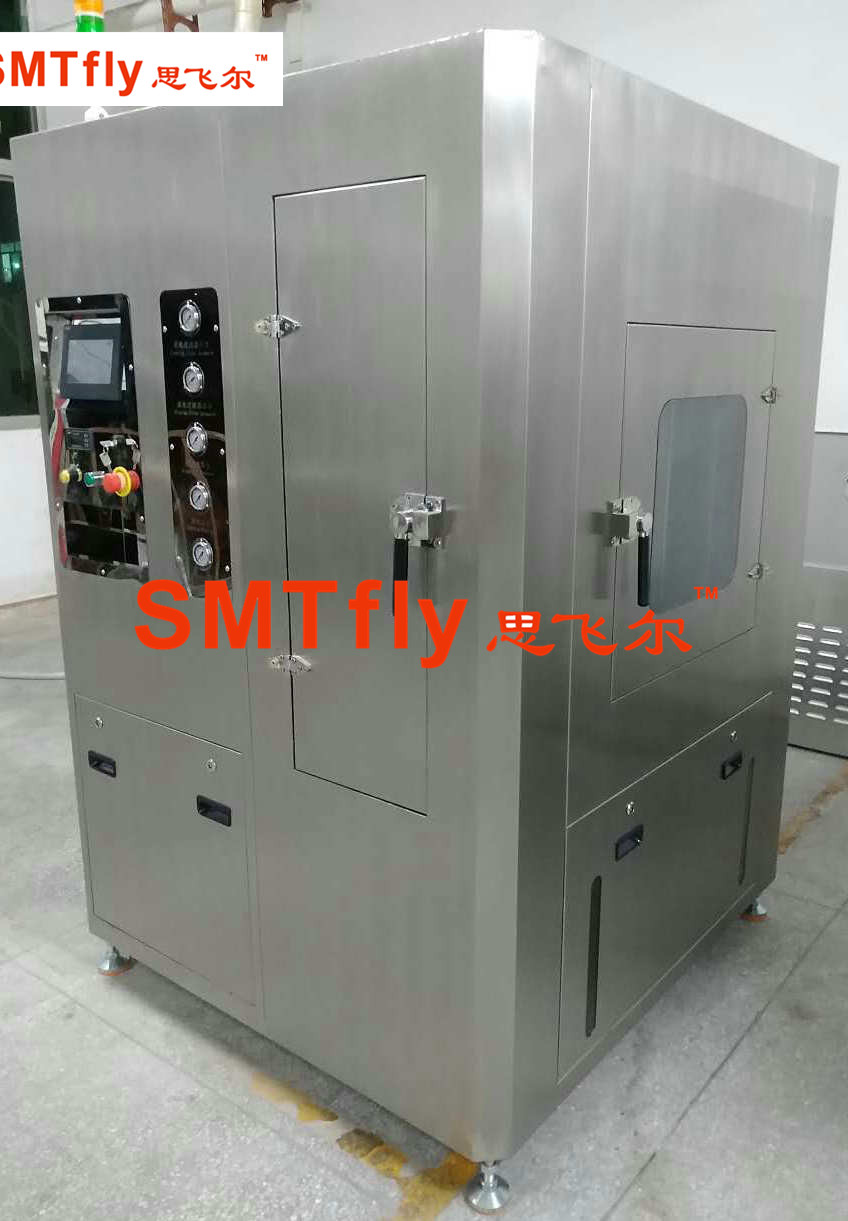

SMT Stencil Cleaning Machine, SMTfly-800
Machine description:
SMTfly-800 is a high quality electric stencil cleaning machine which is used to clean solder paste/red glue stencil, misprint PCB and squeegee. By using water-based chemicals, the stencial can be clean, resin and dry by just pushing one button.
Machine Feature:
1. High quality electrical pump. High pressure wash, resin, dry process.
2. Total SUS 304 structure, resist acid and alkali corrosion, strong, more than 10 years life time.
3. One key operation, wash, resin and dry process complete automatically according to pre-setting procedure.
4. Can clean SMT stencil, sikkscreen, print jig, squeegee, big PCBA, misprint PCB
5. Completey closed spray developing process, make cleaning workshop clean and dry
6. Super electrical and pneumatic parts from Germany, USA and Japan to ensure stability and high quality of machine.
7. Modular design, easy maintenance
8. Touch panel interface, quick cleaning parameters setting: chemical temperature/wash time, resin time/temperature, and dry time/temperature etc.
Machine Specification:
Item |
Parameter |
Max stencial size |
800*750*40(mm) |
Chemical tank |
50*2pcs |
Wash time |
2-5min |
Resin time |
2-5min |
Dry time |
3-5min |
Resin cycle |
1-99 |
Clean Chemical |
Water-based chemicals |
Resin DI water |
Open lope DI water or close loop chemial spray |
Dry mode |
Hot air dry |
Liquid heat temp. |
0-60℃ |
Dry temp. |
0-90℃ |
Wash heat power |
9KW |
Resin heat power |
9KW |
Hot air power |
6KW |
Clean/resin filter |
0.45um |
Power Suppy |
380V, 33KW |
Machine size |
1580*1180*1860mm |
