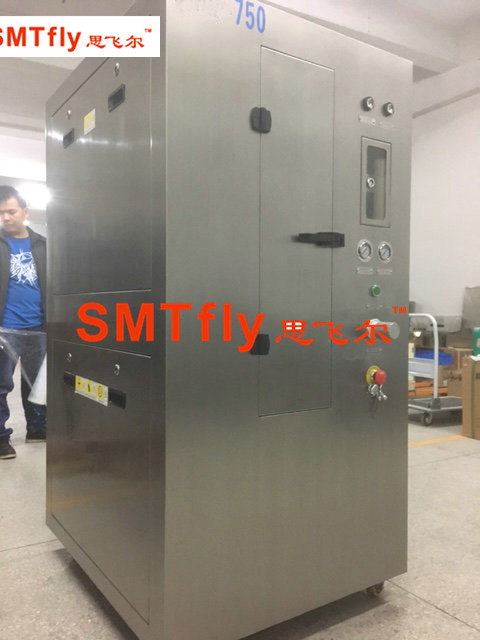

Stencil Cleaner, SMTfly-750

Machine description:

SMTfly-750 pneumatic stencil cleaner is designed for solder paste and red glue printing stencil cleaning of SMT process. Driven by compredded air, constructed by super parts of pneumatic industry and our good manufacturing processing, we guarantee an efficient, reliable cleaning machine and high quality cleaning result. By “One button” easy operation, the machine complete “clean+dry” process automatically. Special designed pipe and patent rotation pod system guarantee stable jet pressure on stencil.

Machine Feature:

1. SUS304 machine structure, acid and alkali corrossion resistance, 10 years life time

2. Totally driven by compressed air, no electric power, totally no fire or explosion risk caused by electrical spark

3. One button easy operation, clean and dry complete automatically

4. Special designed rotate rod and nozzle, ensure good cleaning quality and guarantee stable stencil tension

5. Equipped auto liquid fill in and drain function

6. Inner-lock safety door, once open, machine stopped immediately to ensure operator safety

7. 3 level precise filtering system to make liquid clean by recycled used.

8. Super well-know pneumatic parts from all over the word ensure stable using of the machine

9. Modular design, easy maintenance

10. Liquid recycle use to ensure low consumption

Machine Specification:

Item

Parameter

Max stencial size

750*750*40(mm)

Liquid tank

Max:40L, Min:20L

Clean time

2-4min

Dry time

3-5min

Air supply

0.5-0.7Mpa

Air consumption

200-600L/min

Clean type

360°rotate jet clean+compressed air blow dry

Filter system

20/5/1um(3 levels)

Machine weight

185kgs

Machine size

800*950*1650mm
