  • Wire Stripping Machine, CWDM-6

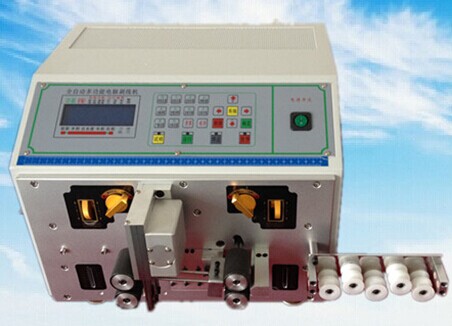

Wire Stripping Machine, CWDM-6

Wire Stripping Machine, CWDM-6

  • Product description: Wire Stripping Machine
  • INQUIRY

1. Features:

1.  Cutting wires;

2.  One end or both ends stripping or half-stripping, middle stripping;

3.  Fully automatic machine;

4.  Suitable for mass production and low volume diversified production;

5.  Producing of different size wires is simplified by changing different guiding tube

6.  With memory function, facilitate system settings.

7.  English control panel available.

2.  Specification:

Item

Parameters

Model

CWDM-6

Power source

AC 220V/ 50/60Hz

Dimension(L*W*H)

600*480*450

Display

Chinese + English

Weight

40 (KG)

Power

400(W)

Cutting length

1~29999mm

Cutting tolerance

(0.2±0.002×L)mm

Stripping depth

Adjustable

Stripping length

0-30mm on the wire head

0-30mm on the wire tail

Middle Stripping times

12

Wire cross section

0.03-6mm² (Diameter0.6~5.0mm)

Wires suitable

PVC/BVR/ Teflon /Silica gel wires

Blade material

High-speed steel

Drive mode

4 wheels
