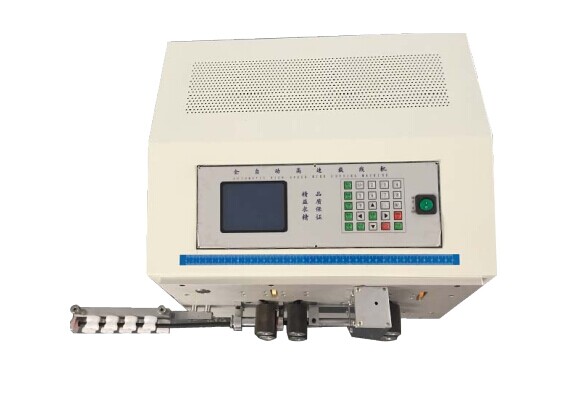

Wire Cutting and Stripping Machine, CWDM-2

1. Features:

1. Cutting wires;

2. One end or both ends stripping or half-stripping, middle stripping;

3. Fully automatic machine;

4. Suitable for mass production and low volume diversified production;

5. Producing of different size wires is simplified by changing different guiding tube

6. With memory function, facilitate system settings.

7. English control panel available.

Item	Parameters
Model	CWDM-2
Power source	AC 220V/ 50/60Hz
Dimension(LWH)	440360300
Display	Chinese + English
Weight	65 (KG)
Power	600(W)
Cutting length	1~30000mm
Cutting tolerance	(0.2±0.002×L)mm
Stripping depth	Adjustable
Stripping length	0-80mm on the wire head 0-25mm on the wire tail
Middle Stripping times	13
Wire cross section	2-50mm² (Diameter2~15mm)
Max guiding tube diameter	φ15.0mm
Wires suitable	PVC/BVR/ Teflon /Silica gel wires
Blade material	High-speed steel
Stripping speed	L=300mm, 1200-1500 pcs/h
Drive mode	6 wheels
