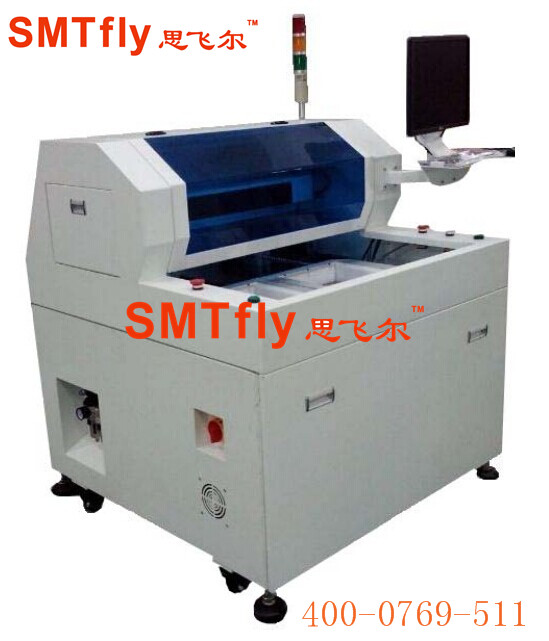

PCB Depaneling Router,PCB Separator,SMTfly-F02

PCB Depaneling Router,PCB Separator,SMTfly-F02

  • Product description: PCB Depaneling Router,PCB Separator,SMTfly-F02
  • INQUIRY

PCB Depaneling Router,PCB Separator,SMTfly-F02 Advantages:
1.  Smooth cutting finish only by router cutting.
2.  There is little distortion on PCB during cutting because using high-frequency spindle motor . It is 1 / 10 of pressing , 1 / 100 of breaking by hand .
3. One-touch program changeover .
4.  Able to cut liner and arc with router machine , diminish the restriction on PCB design .
5.  Read QR code or JIG BIT auto select cutting program , or check accordance between cutting program and JIG .
6. Powerful Dust Collection minimized dust adhesion on PCB .
7. Developed high performance router bit that expanded bit life and relief littering .

8. Cut down PCB cost because need not making V-groove on PCB


PCB Routing Equipment, SMTfly-F01 Specification:

Overall


Dimensions(W*D*H)

1220mm*1450mm*1420mm

Weight

550KG

Height offset

60~110mm

Manipulator


Motor type

JiaBao series

Positioning repeatability

0.001mm

Axis working area(max)

680mm*360mm*50mm

Work station


PCB fixation

standard, specialization

PCB loading/unloading

manual

PCB size (max)

322mm*322mm

PCB thick (max)

5mm

Fixturing


Rigidity fixturing

standard

Fixturing fixation

machinery

Spindle Motor


Power

400W

Spindle

50000rpm/min

Protect

self/wind cooling

Change cutter

Specialization

Routing capability


Cutting speed(max)

100mm/s

Driving speed(max)

3000mm/s

Precision of cutting

0.01mm

Vacuum System


Vacuum power

2.2KW AC 380V

Vacuum

plumb

Utilities


Power

2.2KW AC380V

Air supply

2~5KG/cm2

Programming


Program edit

Inline

Function edit

Line, arc, circula, U-curve

Program storage

HDD

Vision system

SONE colour CCD

milling cutter offset

AUTO

Vacuum setup

AUTO

Operation Monitors


Iindicator

Iindicator Machine state

tool check

Automatic detection tool life, the use of time testing

Motor protect

Have overheating, overload, low voltage protection function

motor over loading check

Have Overload, the line is normal, low voltage protection function

Tool usable time

Automatic detection tool life,

Data statistic

Separate board model, separating count, diverse counting methods

Error record

Software automatically records all alarms memory of machines

III. Accuracy


Axis precision

0.001mm

Cutting precision

0.1mm

IV. Safety


Working area protect

With four sealed protection

Door sensor

Front and rear safety door micro-switch sensor (optional)

Exigency stop button



we're professional ,and we usually do the best solution for you. WhatsApp/Wechat(Bunny):  +86 136 8490 4990
