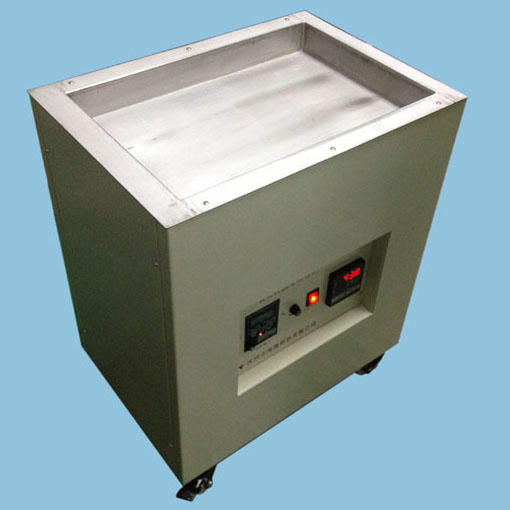

Lead Free Solder Pot, CWSP4530

Product description: Lead Free Solder Pot
INQUIRY

Features:
* Tin pot using imported high‐quality military grade titanium production (titanium is widely
used in aviation, aerospace, chemical, biological, etc.), more than 99.56% titanium. In the
long‐term 400 high temperature, corrosion resistant, acid ℃ ‐resistant, non‐stick tin and other
features, it is the best choice for lead‐free operation.
* Thermostat with PID self‐tuning technology, solid state relay output, temperature deviation
of ± 2 ℃, with temperature compensation function, it can ensure the display and actual
temperature consistent.
* Ceramic heater and thermocouple are made of imported components, high external thermal
heating efficiency, long life time, save energy.
* Switcher function, save tin melting time.
* Frame is made of 1.5mm iron, durable surface coating of white paint, rolling casters for easy
mobility can be fixed without moving the brake.

* Welding larger for electronics plant on board dip tin operations.

Specification:
Model CWSP4530
Tin pot size 450*300*50mm
Power 220V, 4.2KW
Temperature range 0‐600℃
Melting tin capacity 47KG
External dimension 520*370*600mm
